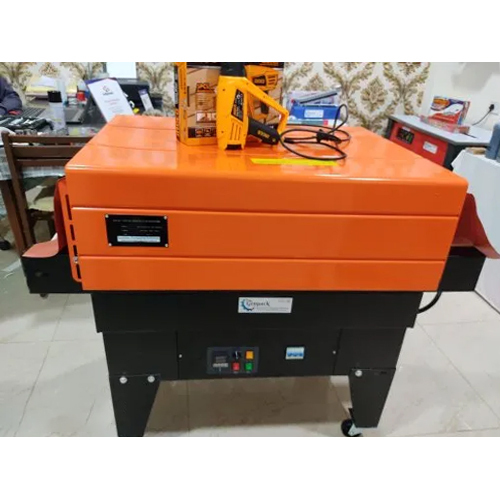

This shrink tunnel machine is a packaging equipment that uses heat to shrink film around items. It consists of a heated tunnel mounted over a conveyor system, with shrink film loosely attached to the products. The heat shrinks the film firmly around the object, providing protection and enhancing appearance.

Features

Easy Operation : Simple working mechanism that requires minimal operator training.
Fast Warm Up : Heats up quickly once turned on.
Adaptable Conveyor Speed : Variable speeds of 0-10 m/min.
Adjustable Temperature : Adapts to different types and thicknesses of shrink film.
Industrial-Grade Results : Professional system that is easy to use and generates consistent quality packages.

Applications

Product Packaging : They are widely used for packaging bottles, cans, and other containers where a tight seal is required.
Labeling : Shrink tunnels can be utilized to apply shrink sleeves or labels that conform tightly to the shape of the product.
Bundling : These machines can bundle multiple products together using shrink film, providing stability and ease of handling during transportation.
Food Industry : In food packaging, shrink tunnels help preserve freshness by sealing products in airtight packaging.
Cosmetics and Pharmaceuticals : They are also employed in the cosmetics and pharmaceutical industries for tamper-evident seals.

Usage

1. Setup the Machine :

Place the thermal shrink packaging machine on a stable, flat surface.
Ensure that the machine is connected to a power source.

2. Prepare the Product :

Place the product you want to package into a suitable shrink film bag.
Make sure the bag is large enough to accommodate the product with some extra space for sealing.

3. Adjust Settings :

Turn on the machine and adjust the temperature settings according to the type of shrink film being used.

4. Load Products :

Place the prepared product with the shrink film bag onto the machines conveyor for sealing.
Ensure that products are spaced adequately to allow for proper sealing and shrinking.

5. Start Operation :

Activate the machine by pressing the start button.
Once sealed, products will move through the heating chamber where hot air will cause the film to shrink tightly around each item.

Highly Efficient Heat Sealing

Engineered for top-tier performance, this shrink tunnel delivers consistent and uniform heat sealing for various packaging needs. The semi-automatic operation, combined with PLC control, ensures both effectiveness and simplicity in usage, enabling operators to achieve optimal shrink results with minimal fuss.

Sturdy Build and User Safety

Constructed from mild steel, the shrink tunnel provides lasting durability and stability in demanding work environments. Its safety-oriented build and precise temperature regulation contribute to safer operations, allowing for peace of mind throughout continuous use in industrial settings.

FAQ's of Electric Heavy Duty Semi-Automatic Shrink Tunnel:

Q: How does the semi-automatic shrink tunnel operate during the packaging process?

A: The shrink tunnel requires manual loading of products onto the conveyor, after which it automatically moves items through a heated chamber, using its 9.6 KW power system to shrink wrap films uniformly around each item.

Q: What materials and packaging can be processed with this shrink tunnel?

A: This machine is compatible with a variety of shrink films such as PVC and polyolefin, making it suitable for packaging boxes, bottles, cans, and other industrial products that require heat-sealed protection.

Q: When is maintenance required for the shrink tunnel, and what does it typically involve?

A: Routine maintenance is recommended every 3-6 months, which generally includes inspecting heating elements, cleaning the conveyor, and checking electrical connections to ensure optimal functioning and longevity.

Q: Where can this shrink tunnel be installed for best results?

A: The machine should be placed on a level, stable surface in a well-ventilated area with access to a 220 Volt power supply, ideally near packaging stations within warehouses or manufacturing units.

Q: What are the main benefits of using this semi-automatic shrink tunnel over manual options?

A: It offers quicker, more uniform shrink wrapping, higher efficiency, reduced labor, and more consistent sealing quality, all while using less power and ensuring safer, more reliable operations.

Q: How does the PLC control system enhance the machine's operation?

A: The PLC (Programmable Logic Controller) allows for precise and consistent control of temperature and conveyor speed, optimizing the heat-sealing process and minimizing the risk of operator error.

Q: Is there any technical support or warranty provided after purchase?

A: Yes, a 1-year warranty covers manufacturing defects, and technical support is available through the distributor, supplier, or service provider, ensuring prompt assistance if required.
